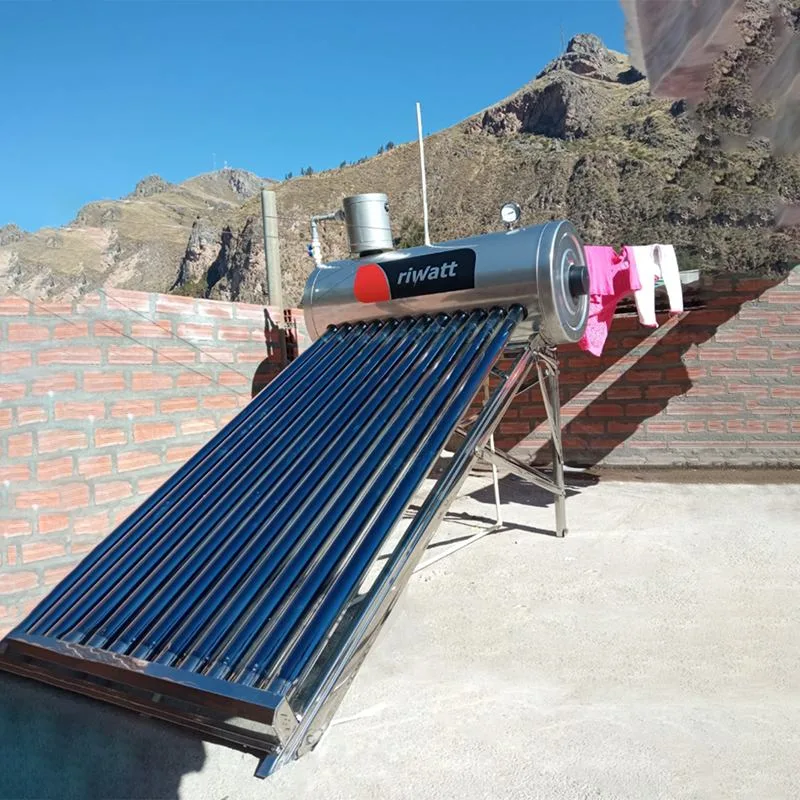

120L solar hot water (non-pressurized ) is designed for reliable household solar water heating in Peru. Built with a full stainless steel structure and high-quality evacuated tubes, it delivers efficient hot water solar heat with long service life.
Manufactured in China under strict RIWATT standards, this system is ideal for residential applications requiring economical and durable solar water heating solutions.
We are currently seeking distributors and partners across Peru.
| Model: | Solar Vacuum Tube | Aperture Area | Gross Area | Capacity | 40’HQ Loading | |
| Item No. | Qty /【pcs】 | Size /【mm】 | 【M2】 | 【M2】 | 【L】 | 【Sets】 |
| 100L-Prime | 10 | Φ58 X 1800 | 0.94 | 1.33 | 100 | 180 |
| 120L-Prime | 12 | Φ58 X 1800 | 1.13 | 1.596 | 120 | 150 |
| 150L-Prime | 15 | Φ58 X 1800 | 1.41 | 1.995 | 150 | 120 |
| 180L-Prime | 18 | Φ58 X 1800 | 1.68 | 2.394 | 180 | 100 |
| 200L-Prime | 20 | Φ58 X 1800 | 1.87 | 2.66 | 200 | 90 |
| 240L-Prime | 24 | Φ58 X 1800 | 2.25 | 3.192 | 240 | 75 |
| 300L-Prime | 30 | Φ58 X 1800 | 2.811 | 3.99 | 300 | 60 |
| 360L-Prime | 36 | Φ58 X 1800 | 3.37 | 4.788 | 360 | 50 |
Water Solar Heater 120L Key Features
● Capacity available: 80/100/120/150/180/200/250/300/360L
● Inner tank: stainless steel SUS304-0.4/0.5/0.7/0.8mm
● Vacuum tube: Cu/SS-ALN(H)/SS-ALN(L)/ALN 58-1800mm
● Water tank outer tank shell: SUS-304-2B stainless steel
● Insulation: high density polyurethane,55mm
● Frame: stronger 201 stainless steel 1.2mm thickness
● Bracket angle:20/25/27/30/38/45 degree
120L Non Pressure Solar Geysers Technical Parameters
| 120L Solar Hot Water Storage Tank | ||
| 1 | Material of out tank | SUS-30-4-2B Stainless Steel. |
| 2 | Material of inner tank | Food grade stainless steel SUS304-2B,0.4/0.5mm thickness |
| 3 | Tank insulating layer | 55mm , high-density polyurethane foam |
| 4 | Inlet and outlet hole | 1/2’’,3/4’’ |
| 5 | Tube to tube distance | 80mm |
| 6 | Tank size | 470/360mm or 480/360mm |
| 7 | Welding: | Argon arc welding |
| Solar Evacuated Vacuum Tubes | ||
| 8 | Tube structure | All-glass double deck co-axial structure |
| 9 | Glass material | High borosilicate 3.3 glass |
| 10 | Outer tube dia. and glass thickness | Ø58±0.7mm; Glass thickness 1.6±0.15mm |
| 11 | Inner tube dia. and glass thickness | Ø47±0.7mm; Glass thickness 1.6±0.15mm |
| 12 | Tube size | 58*1800mm |
| 13 | Structure | Cu/SS-ALN(H)/SS-ALN(L)/ALN |
| 14 | Sediment method | Three targets magnetron sputtering plating |
| 15 | Specific absorption | 0.93-0.96(AM1.5) |
| 16 | Emission ratio | 0.04-0.06(80℃±5℃) |
| 17 | Vacuum tightness | 5.0×10¯³ Pa |
| 18 | Idle sunning property parameters | 260-300 m².C/KW |
| 19 | Average heat loss coefficient | ULT=0.4~0.6W/(M2.0C) |
| 20 | Resistant Hail | ≤35mm |
| 21 | Useful life | 15 years |
| Solar Water Heater Bracket | ||
| 22 | Bracket: | Coated Stronger galvanized steel-1.5mm |
| 23 | Bracket angle: | 25 degree flat roof |
| 24 | Fastening pieces: | Stainless steel. |
120L Solar Water Heaters Working Principle:
Thermosyphon solar water heater(compact non-pressure solar water heater) relies on the natural circulation of water between the collector and the tank or heat exchanger. As water in the vacuum tubes is heated it rises naturally into the tank, while cooler water in the tank flows down to the bottom of the vacuum tubes, causing circulation throughout the system.
Designed for Peru Household Conditions
The RIWATT solar water heater is suitable for:
Residential houses
Small family homes
Rural and off-grid areas
Regions with strong sunlight conditions
Areas requiring economical hot water solar heat systems
Its stainless steel design ensures durability against mineral content and environmental exposure common in many Peru regions.
Why Choose RIWATT Solar Water Heating
Specialist in pressurized & non-pressurized solar water heating
Strict material thickness standards
Professional evacuated tube technology
Reliable manufacturing quality
Export experience in Latin America
OEM & distributor support available
Peru Distributor Opportunity
RIWATT is actively seeking:
National distributors
Regional wholesalers
Installation partners
Solar energy project companies
Partners receive marketing support, technical guidance, and stable product supply.
FAQs
1. Is a 120L non-pressurized solar water heater suitable for households in Peru?
Yes. A 120L system is ideal for small families and provides efficient daily solar water heating using natural gravity pressure.
2. What are the advantages of stainless steel solar water heaters?
Stainless steel tanks offer excellent corrosion resistance, longer lifespan, and improved hygiene for household hot water solar heat.
3. How do evacuated tubes improve solar water heating efficiency?
Evacuated tubes reduce heat loss and absorb solar radiation efficiently, allowing faster water heating even during cooler mornings.
4. Is this RIWATT solar water heater suitable for low water pressure homes?
Yes. The system is specifically designed as a low-pressure gravity feed solution for residential installations.
5. Does RIWATT provide distributor support in Peru?
Yes. RIWATT is currently expanding in Peru and offers cooperation opportunities for distributors and solar installation companies.
