Nicanagua 3000L solar hot water heater Specification:

1. consisted by 300 tubes open loop evacuated solar tubes,
2. 3000L stainless steel water storage tank,
3. auxiliary heated by
4. 3 HP air to water heat pump,
5.  PUN-201 booster pump,
6. circulation pump RS15/6

3000L Solar Water Heater – Working Principle :

●The storage tank and collector loop are filled with cold water.
●Solar radiation heats water inside the evacuated tube collectors.
●When the temperature difference reaches the set value, the controller starts the circulation pump.
●Hot water flows into the storage tank while cooler water returns to the collector for reheating.
●If solar heat is insufficient, the auxiliary electric heater provides backup heating automatically.
●Once the target temperature is reached, the system stops circulation and hot water is ready for use.

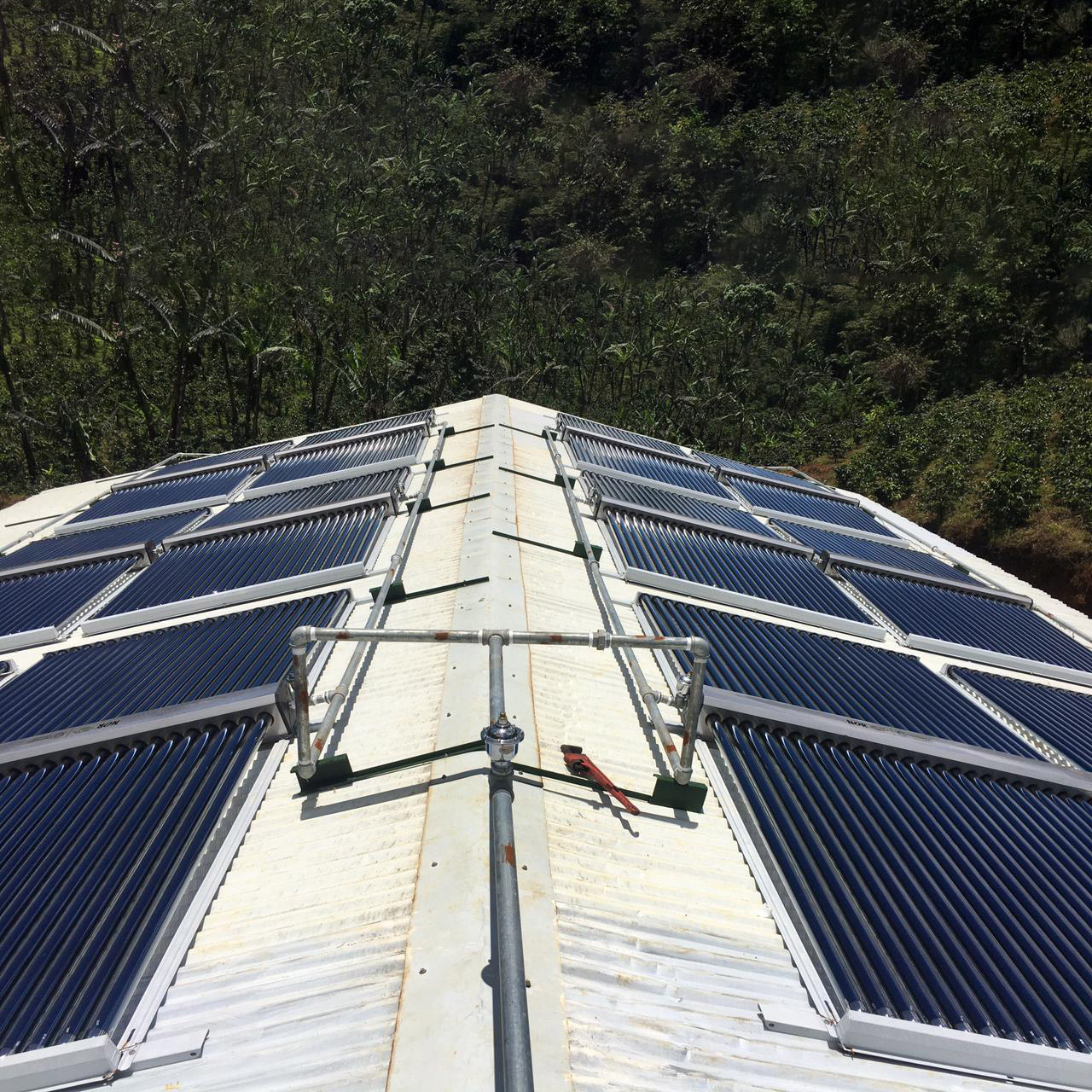

Nicanagua 3000L Solar Hot Water Heater  OverView
Serial No. GOODS DSCRIPTION QTY.
1  Vertical Solar Collector 25 Tubers Model:【GSR- 25】 12
2 3000L  full stainless steel solar water tank 1
3

Stainless Steel Air Vent 3/4”

1

4

inverter type hot water booster pump

2

5

circulation pump between Solar colector and water tank

2

6

integrated control cabinet

1

7

Electric Heater Element 600W – INCOLOY 800, PREMIUM MODEL

3

8

3/4” 316L stainless steel solar hose

 100

9

1” 316L stainless steel solar hose

50

10

EPDM insulation pipe 1.9 meter/tube, thickness:15mm thickness.

200

11

Al.Foil Tape0.15mm*50m  width: 45mm

50

12

TEE valve 3/4”

3

13

 Ball Valve with Filter 3/4”

4

14

 Ball Valve with Filter 1”

2

15

 Ball Valve 3/4”

6

16

 Ball Valve 1′

2

17

3/4” thermostatic  Mixing Valve

1



3000L Solar Water Heater – Key Features

●Ideal for large hot water demand — apartments, hotels, hospitals, schools, factories, and pools.
●Cost-effective system with long service life (up to 15 years).
●Flexible installation for different building structures.
●Anti-freezing design with well-insulated pipelines.
●Simple installation and easy system connection.
