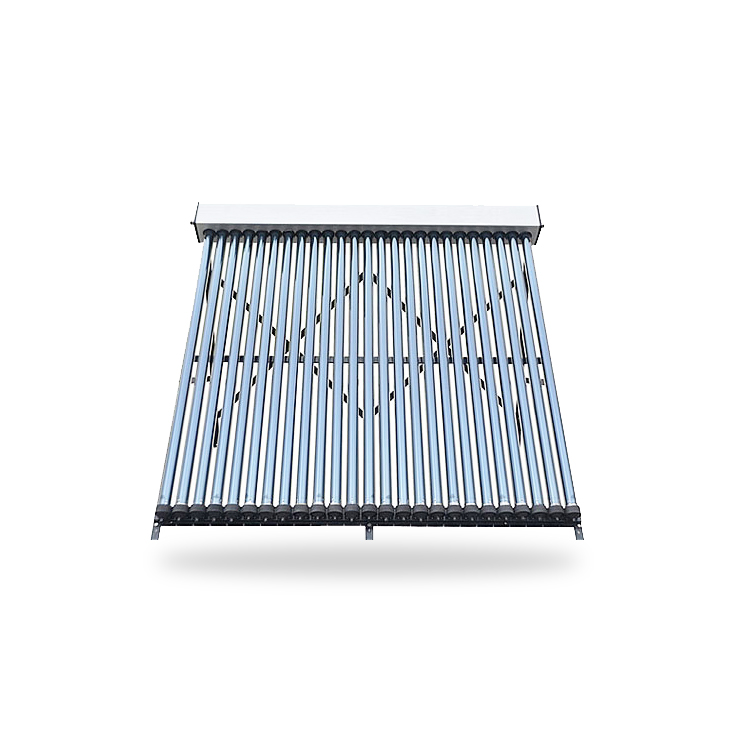

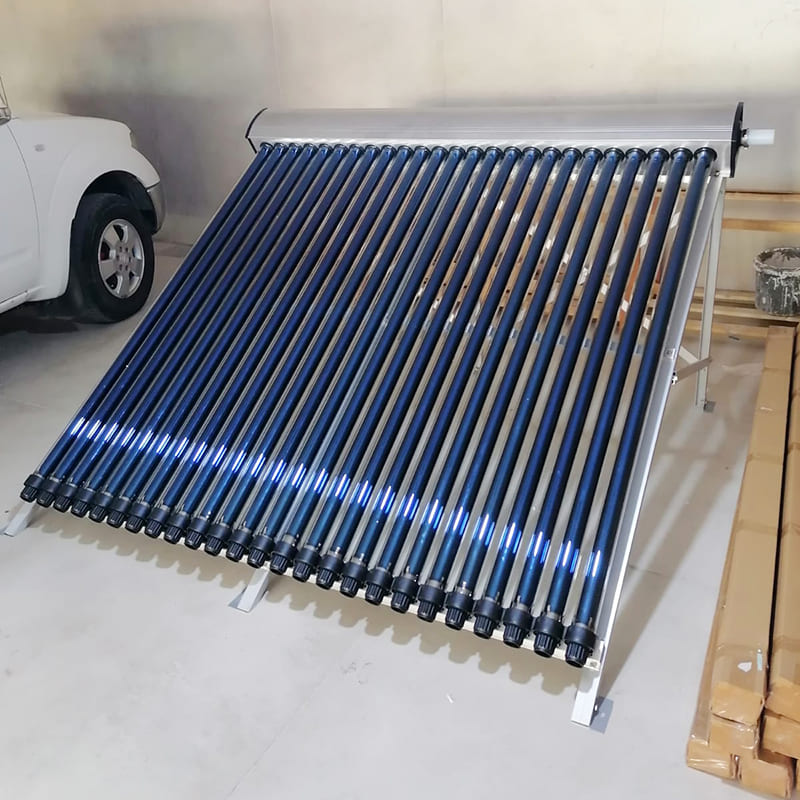

Swimming Pool Solar Collector – Riwatt 25-Tube 316L Stainless Steel Non-Pressure Design

Swimming Pool Solar Collector – Riwatt 25-Tube 316L Stainless Steel Non-Pressure Design

Swimming Pool Solar Collector Working Principle:

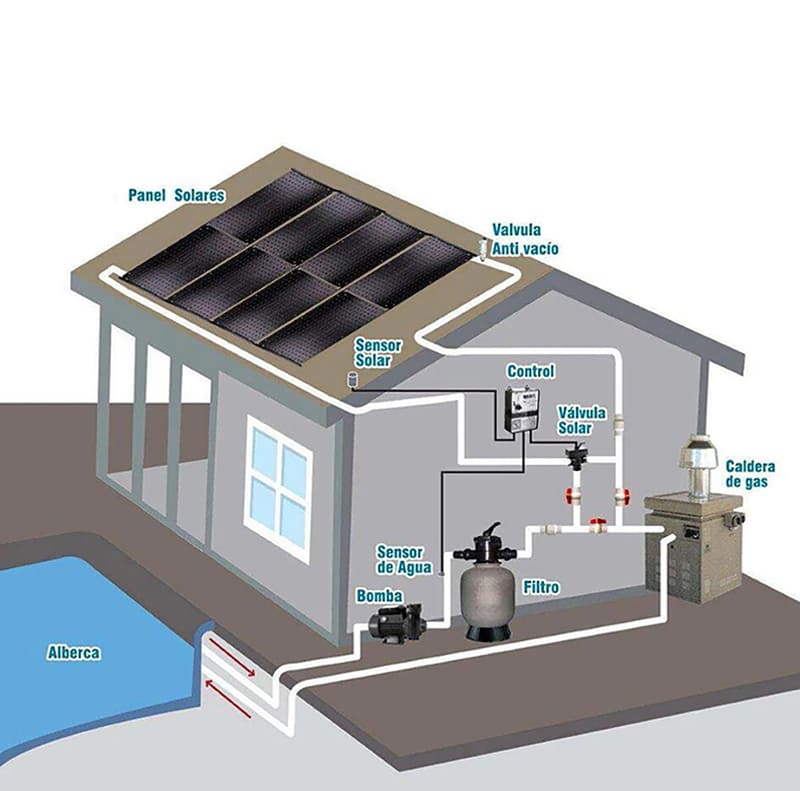

The 316L Stainless Steel Swimming Pool Solar Collector operates similarly to a non-pressure solar water heater. It functions as a manifold without a storage tank. The selective coating on the tubes absorbs solar energy and converts it into thermal energy to heat water. Typically used for swimming pool heating and large-scale commercial solar water heating projects, the water circulates continuously between the tank and the collector via a circulation pump.

Swimming Pool Solar Collector Key Features:

* Round absorber surface of vacuum tubes passively tracks the sun throughout the day for efficient heat collection.
* Available in 20, 25, and 30-tube models, allowing flexible configurations to meet various project requirements.
* Environmentally friendly with low initial investment and high energy savings.
* Ideal for large-scale solar water heating system installations.
* Low maintenance and long-lasting performance.

Swimming Pool Solar Collector Specifications:

*Vacuum Tube:Borosilicate glass 3.3, Φ58×1800mm
*Outer Shell:Stainless steel
*Inner Shell:316L stainless steel
*Insulation Layer:Polyurethane foam
*Support Frame:Corrosion-resistant aluminum alloy

Swimming Pool Solar Collector Applications:

*Suitable for hot climate regions with year-round operation.

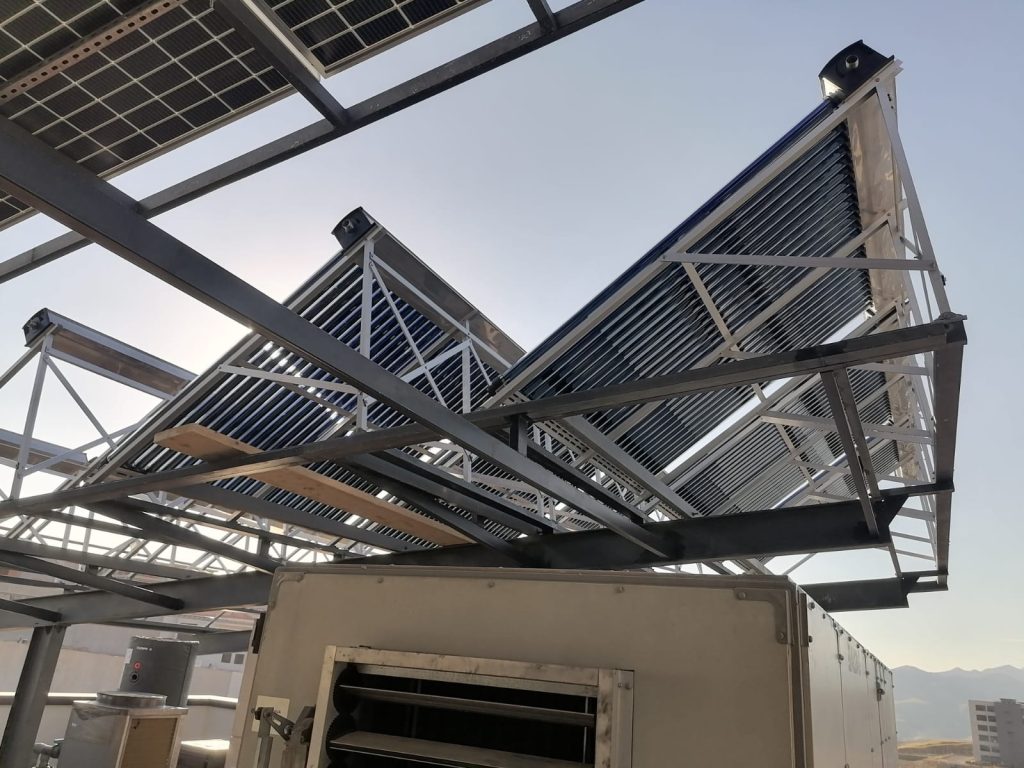

* Large-scale solar water heating projects:
* Hotels,
* Cchools,
* Hospitals,
* Factories,
* Apartments,
* Swimming pools, etc.

Why Choose 316L Stainless Steel Swimming Pool Solar Collectors Over SUS-304 for Swimming Pool Heating Solar Collector?

316L stainless steel is preferred over SUS-304 for swimming pool heating due to its superior corrosion resistance, especially in chlorinated and saltwater environments. Key reasons include:

1. Better Corrosion Resistance: 316L contains molybdenum, making it more resistant to pitting and crevice corrosion than SUS-304, which is vulnerable to rust in pool environments.
2. Longevity: 316L lasts longer, reducing the need for replacements and repairs.
3. Saltwater Resistance: Ideal for saltwater pools, where SUS-304 would corrode more quickly.
4. Lower Maintenance: 316L requires less upkeep due to its durability in harsh conditions.
5. Cost-Effective: Though more expensive initially, 316L saves money over time with fewer repairs and replacements.

In short, 316Lstainless steel solar collectors offers better long-term performance and reliability for swimming pool heating systems.

FAQ-Frequently Asked Questions  – Swimming Pool Solar Collectors:

1. Why choose 316L stainless steel instead of 304?

316L contains molybdenum, which provides superior resistance to chlorine and salt corrosion. It’s ideal for swimming pool heating and coastal environments, ensuring longer lifespan and stable performance.

2. What applications is this collector suitable for?

Perfect for swimming pool heating, hotels, schools, dormitories, and industrial solar hot water systems with medium to large demand.

3. What is the maximum working pressure?

Typically 0.05~0.1 MPa,that is to say, the solar collector itself only bears the water’s gravity pressure, not any system pressure.

4. Can it be integrated with existing hot water systems?

Yes. It can work with existing gas, electric, or heat pump systems—solar energy provides primary heating, and the auxiliary system automatically supports on cloudy days.

5. How efficient is the collector?

The collector uses high-efficiency vacuum tubes or fin-type absorbers with absorption rates over 92%, achieving 50–80% annual energy savings.

6. How is corrosion or scaling prevented?

316L stainless steel offers excellent anti-corrosion performance. We recommend using softened water and regular maintenance to ensure long-term efficiency.

7. Is the system maintenance complicated?

Almost maintenance-free. A simple annual inspection of system seals and pump operation is usually sufficient.

8. Can it work on cloudy or rainy days?

Yes. The system can be equipped with an electric heater or heat pump backup to ensure continuous hot water supply even without sunlight.

9. What is the expected service life?

With proper installation and maintenance, 316L stainless steel collectors can last 15–25 years.

10. Is customization available?

Yes. Various sizes, capacities, and connection options are available to match specific project requirements for swimming pools or industrial applications.
