Heating Water Solar – Stainless Steel Integrated High Pressurized Solar System

Riwatt Heating Water Solar system delivers high-pressure hot water using stainless steel construction and efficient evacuated tube technology—ideal for homes and commercial applications, saving up to 80% energy.

♦ Model : WattPro-25 (215L)
♦ Vacuum Tubes: 58-1800mm,25 tubes,
♦ Inner Tank: 316L or 304-2B,1.2~2.0mm
♦ Outer Tank Shell: SUS-304-2B steel plate
♦ Bracket : 2.0mm ALUMINUM ALLOY

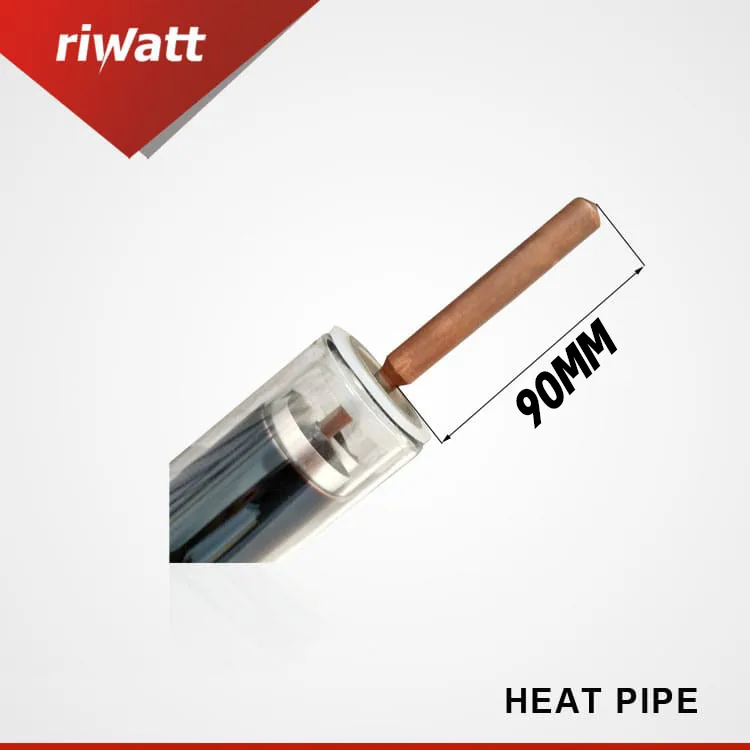

♦ Heat Pipe Material: TU1 copper,14*90mm
♦ Warranty: 5(five) years

GET A QUOTE

PRODUCT DETAILS

Heating Water Solar system uses stainless steel tanks and high pressurized technology to deliver reliable hot water all year round. Ideal for homes, hotels, hospitals, and industrial usage where stablepressure and high temperature are required.

Pressurized Solar Water Heater Working Principle:

●The heat pipe pressurized solar heater tank has no exhaust hole,therefore,it must bear the pressure come from tap water and hot water,when use,the hot water comes out because of water pressure.
●Vacuum tube absorbs solar energy,and conductive copper pipe transfers the heat into the pressurized solar water heater tank,In this case,the water inside the tank becomes hot.
●No water in the heat pipe makes the whole system can bear pressure.

High Pressure Solar Water Heater Key Advantages:

1.Start up quickly, heat pipe transfer the heat energy into the storage tank swiftly.
2.Withstand pressure of max 10bar, can be connected with city water directly, work automatically.
3. The storage tank and the heat pipe mechanical sealed, the solar water heater can still work even with several tubes breakage.
4. With reasonable design and choose excellent material, the inner tank is without any breakage after one hundred thousand time’s high pressure testing.
5. High density polyurethane foam, well insulation.
6. Can be installed in series and parallel to be a solar hot water system.
7. Can be connected with gas water heater and small boiler, also can preheat the water in advance.8. Can be installed in anywhere ( for example, you can install the solar water heater on the ground of the garden, and use the hot water on the third floor).

S.W.H with Copper Heat Pipe Advantages:

1. Transfer the heat energy quickly, we use special medium in the heat pipe and it can transfer the heat energy more than 1000 times faster than copper.
2. Highly efficient absorber, it increase 20% or more than ordinary solar water heater.
3. No water and no water scale inside the evacuated tubes, the tubes will not be cracked even if during – 40 Degree..
4. Withstand pressure of 0.7 Mpa, can be connected with the city water directly.
5. Can still work even with several tubes breakage. The water will not flow out from the storage tank.6. Can be used in sunny days even if in the extreme cold climate.

WattPro Solar Water Heater Unique Sales Points:

● With never stand frame & SUS304 stainless steel screw & nuts
● Increased water tank length provides an 18% boost in system volume.
● New designed vacuum tube holder.
● New design electric element cover.
● 316L stainless steel socket.

Pressuirzed Heating Water Solar Advantages:

✔ Stable hot water supply under pressure
✔ 60%–80% energy saving compared to electric heaters
✔ Long lifespan (15+ years)
✔ Low maintenance cost
✔ Eco-friendly solution with zero emissions

Heating Water Solar System Applications:

Residential homes & villas
Hotels and guest houses
Hospitals & clinics
Gym & swimming pool facilities
Schools & dormitories
Industrial hot water supply

Solar Water Heater Specification:

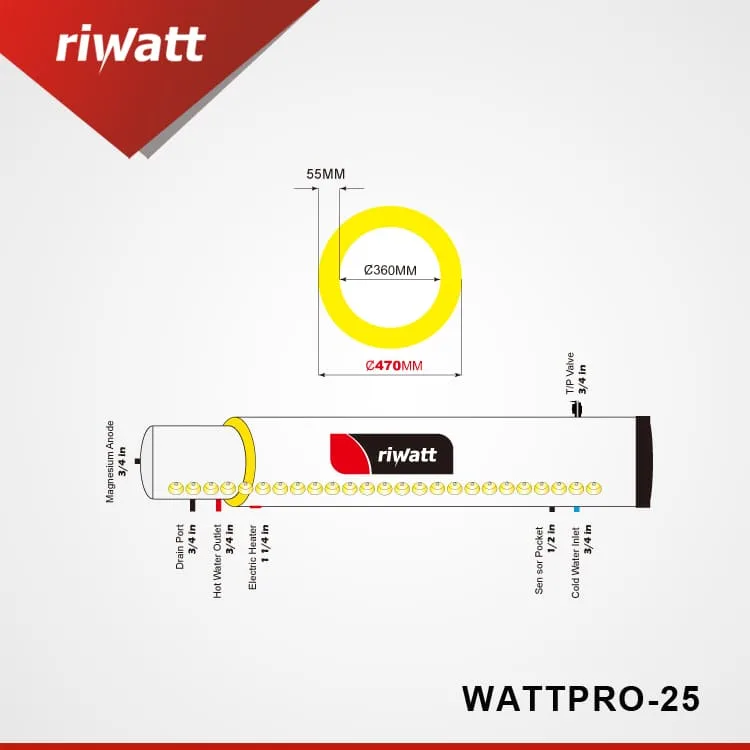

WATER TANK
Inner tank	Food grade SS. SUS 304-2B, min. 1.2 mm
Inner tank diameter	Ø360 mm.
Inner tank length	920 mm.	1320 mm.	1720 mm.	2120 mm.	2520 mm.
Tank capacity	100L	140L	180L	215L	255L
Length of the tank	1050 mm.	1450 mm.	1850 mm.	2250 mm.	2650 mm.
Outer tank	Food grade SS. SUS 304-2B
Outer tank diameter	Ø470 mm
Thermal insulation	polyurethane foam, high-density, closed-cell, density: 40-50 kg/m3, Thermal conductivity (material)
	λ: 0.022 W/(m2·Ko), insulation thickness: 55 mm.
Water pressure	max. pressure: 12 bar (test), operating pressure: 7 bar
Heat exchanger (Heat-pipe sleeves)	food grade SS. SUS 316 sleeves
HEAT PIPE VACUUM TUBES
Structure of vacuum tube	All-glass double-tube
Vacuum tube size	length: 1800 mm., diameter ext. 58 mm,
Material	high quality borosilicate 3.3 glass.
Vacuum tightness	P.≤5.0X10ˉ3 (PA)
Low emittance	ε = 0.04～0.06 (80℃±5℃)
Absorber	aluminum nitride Cu/SS-ALN(H)/SS-ALN(L)/ALN
Coating method	three target magnetron sputtering plation
Specific absorption	α = 0.92～0.96 (AM1.5)
Stagnation temperature	260～300℃
Pressure-endure ability	0.7Mpa
Hail resistance	25mm
Lifetime	15 Years
Heat-pipe size	condenser: diameter 14mm., length 650-800 mm.;
	the tube diameter of 8 mm., length 1700 mm.
Cold resist	-37℃
Aluminum fin	1 pcs. – metal thickness 0,2 mm.; length 1600-1750 mm.
Brackets
Destination	for mounting on a flat or sloping surface
Material	Never-Rust Al.Alloy Structure 45 degree.
Assembly	The frame consists of many elements (SS. M8 bolts screwed)
Wind resistance	180 km/h

Pressurized Heating Water Solar Accessories:

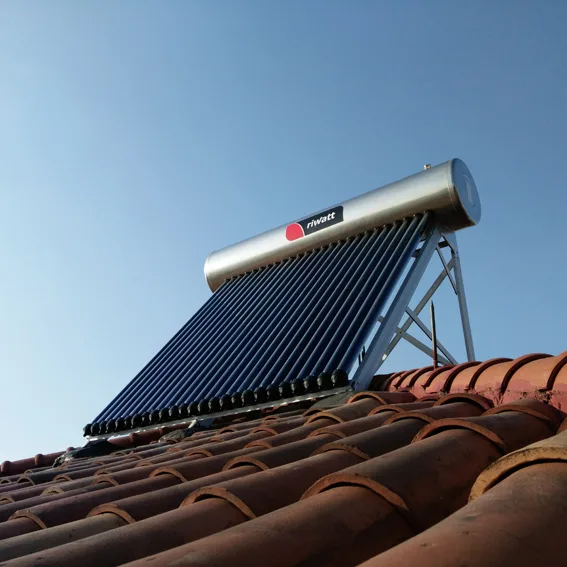

Some Real Installation Pictures of Heating Water Solar:

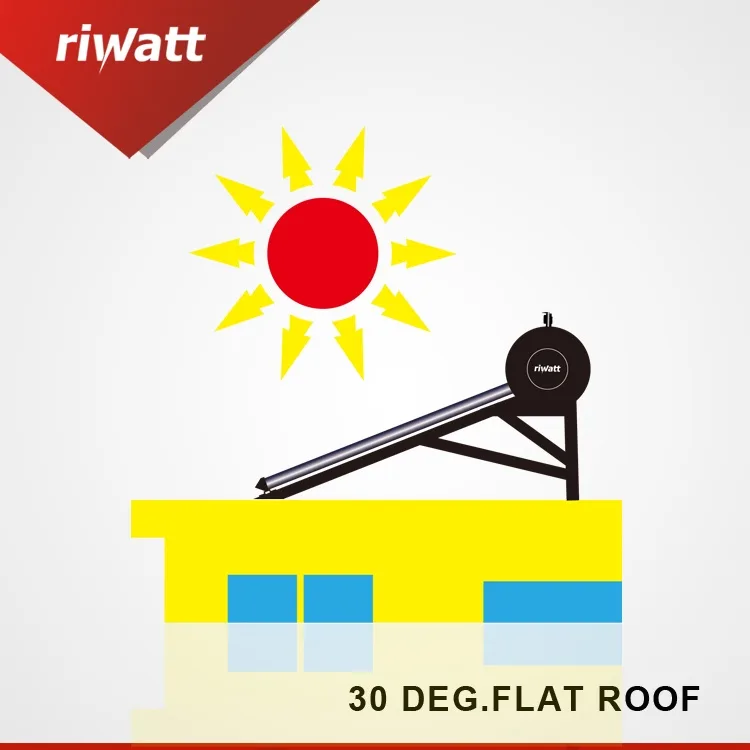

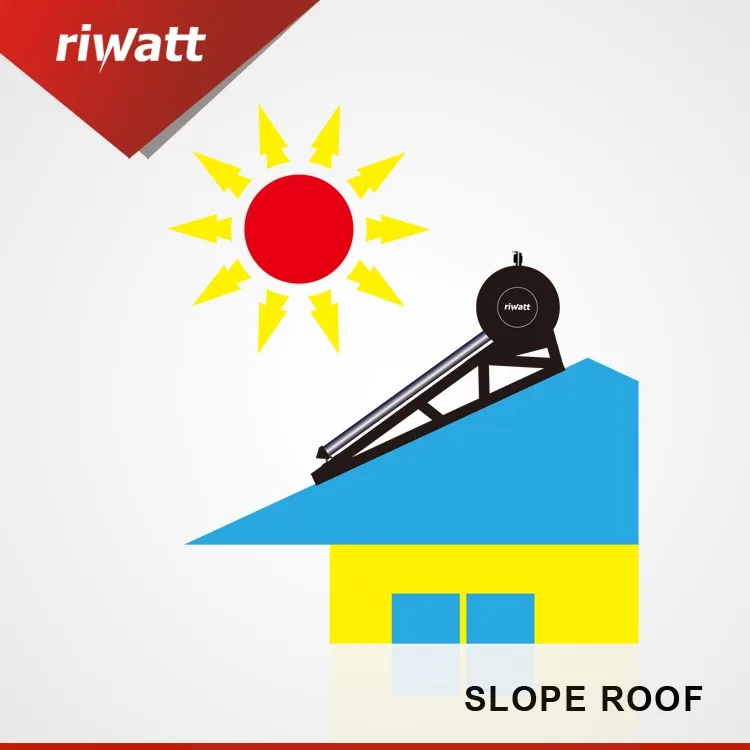

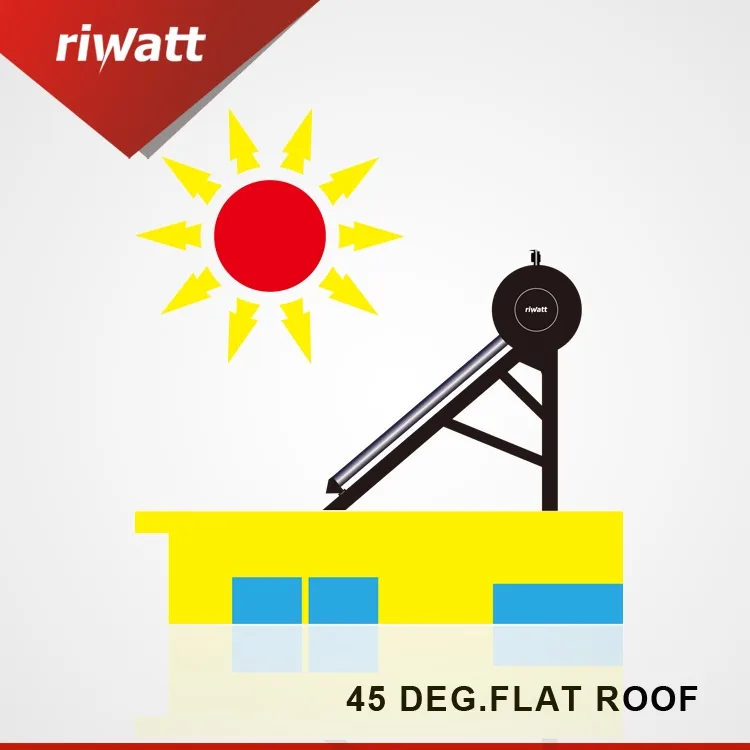

Solar Water Heater Mounting Surfaces and Direction:

Solar system can be installed on a flat roof or a tiled roof with maintaining the proper angles and directions.
Naturally you want the collector to receive the maximum amount of sunlight each day and throughout the year.
As a general rule if you are in the Northern Hemisphere then the collector should face south and if you are in the Southern Hemisphere then the collector should face north. See diagram below.

You do not have to be too careful about mounting the collector at the exact angle suggested. If your roof angle is within 10o+/- of your desired angle you can just mount the solar collector flush against the roof surface. The added trouble of adjusting the collector to a precise angle is not warranted as it will not result in a great improvement in efficiency.
